NEO LIVING 20FT 220-01 Model promotional sale

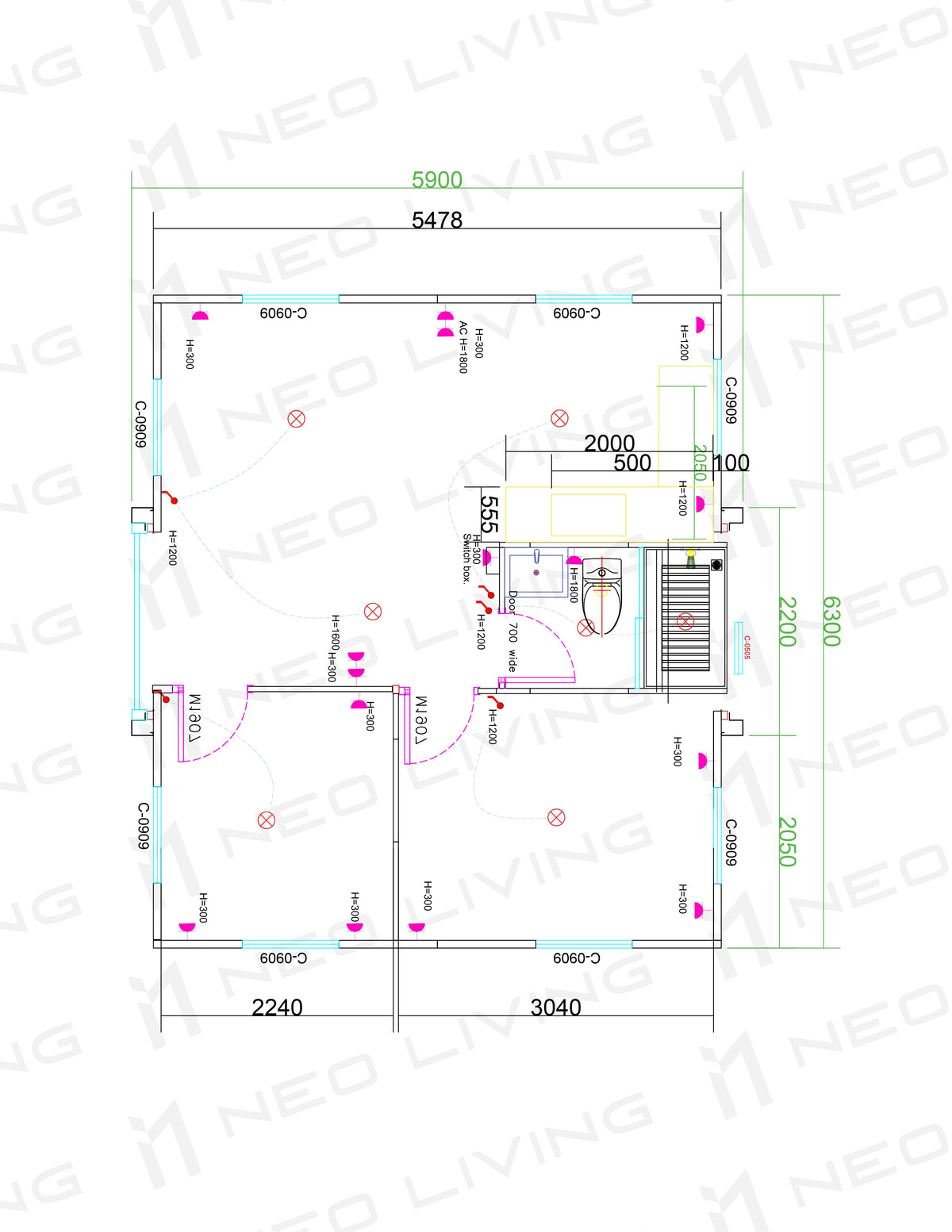

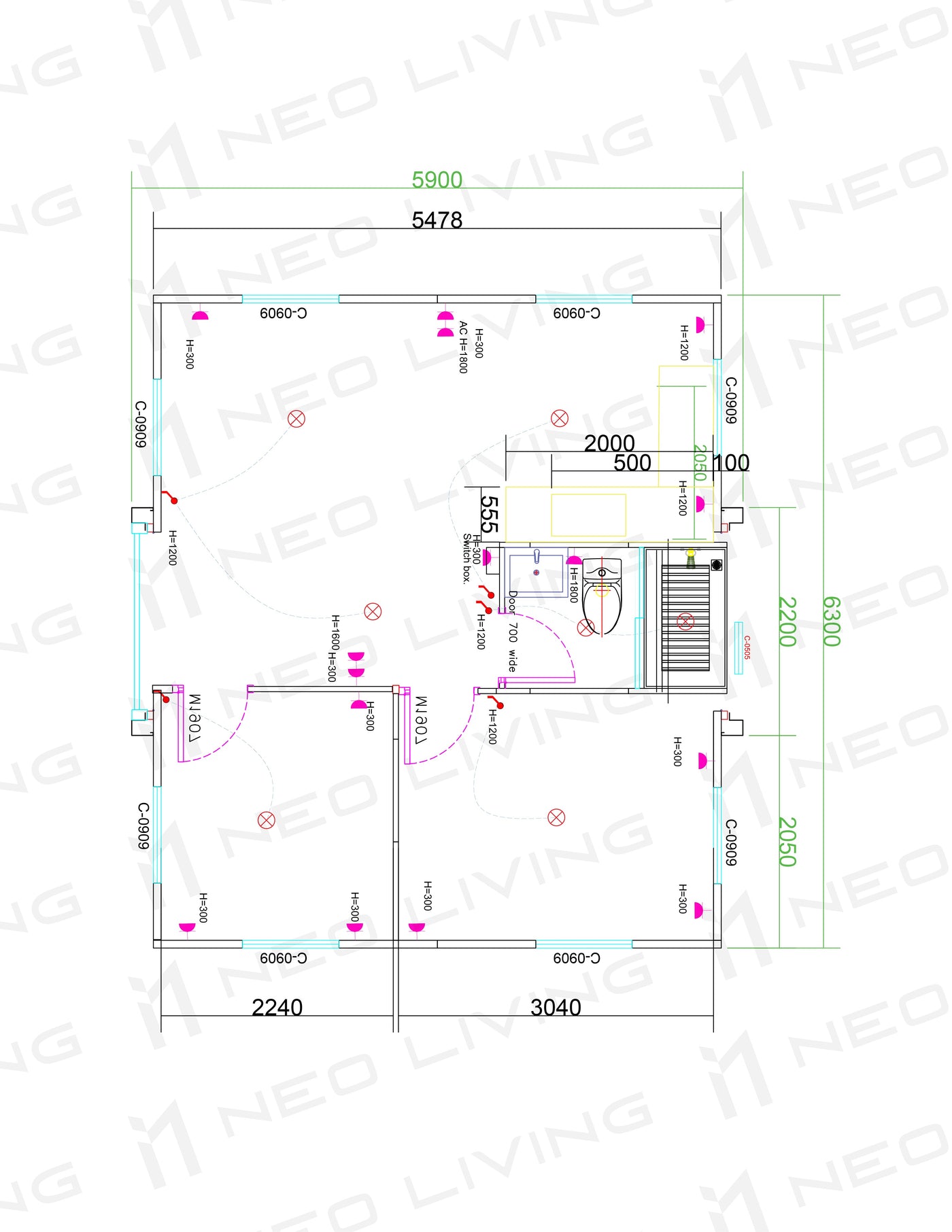

Dimensions: 5900mm (L) x 6300mm (W) x 2480mm (H)

- Australian standard Concealed electrical box

- Australian standard sockets 12-15 units. International socket available

- CEE industrial plug: 220V，50Hz，3P32A×1

- Fully wired according to Australian standards

- 15W LED round ceiling light, 5 sets.

- Purple wiring with RCBO switch for safety.

Watermarked pipes for hassle-free installation

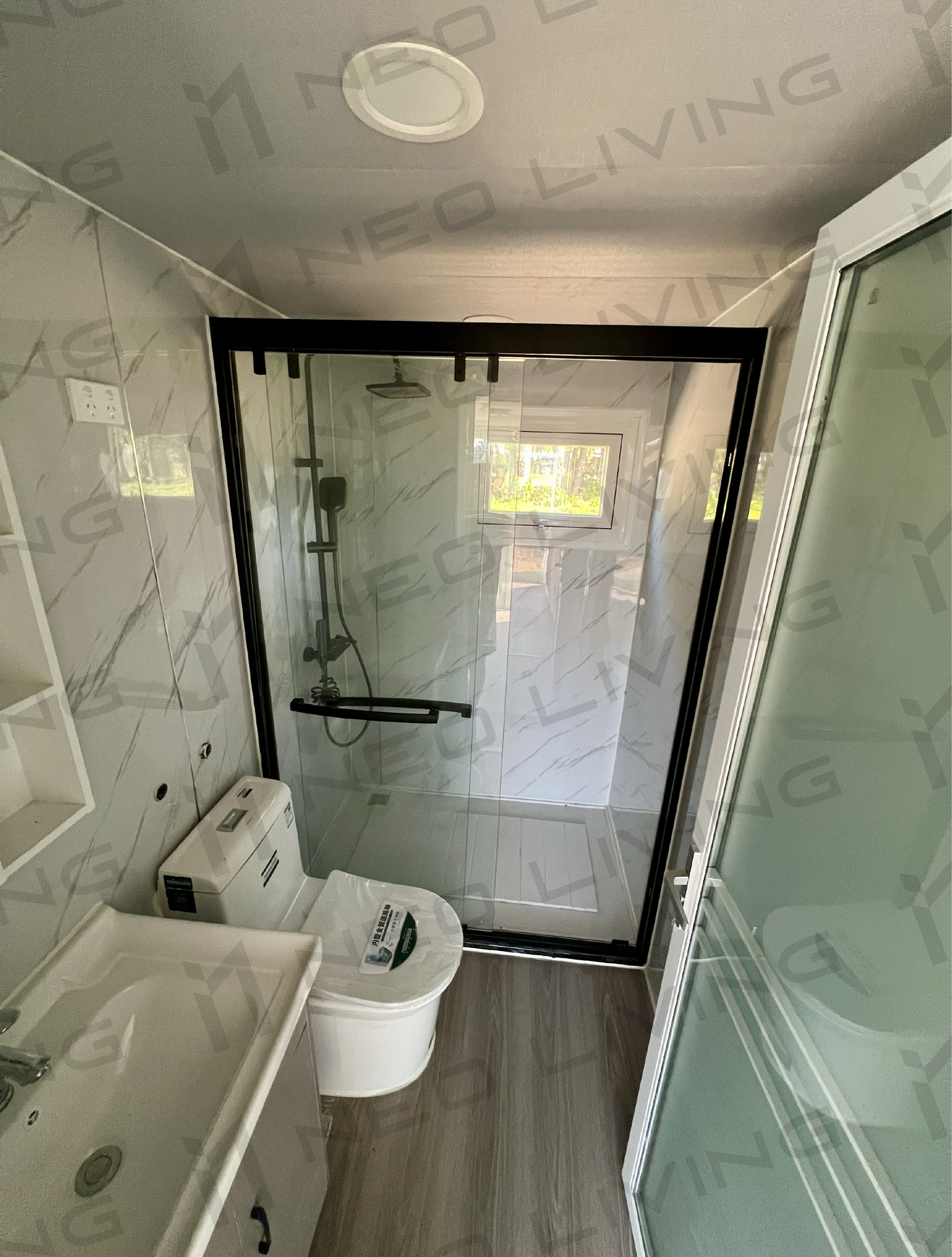

- Toilet

- Shower room

- Wash basin

- Ventilation window

- Water supply and drainage pipe fittings

Main Frame:

Main beam 1 on the ground: 80mm*100mm square steel, galvanized beam 2.5mm thick; Main beam 2 on the ground: 180m special-shaped C-shaped steel, galvanized beam 2.5mm thick
Ground secondary beam: specification 60*40*1.5mm thick*9 galvanized square tubes or C-shaped steel;
Column: specification 210*150mm, galvanized 2.5mm thick;
Roof main beam 1: 80mm*100mm square steel, galvanized 2.0mm thick; Roof main beam 2: 140m special-shaped C-shaped steel, galvanized beam 2.5mm thick
Roof secondary beams 40*40*1.5mm thick*7 galvanized square tubes or U-shaped steel, 20*40*1.2 square tubes*2 pieces

Side wings frame:

P80*1.5mm special pipe/P65*1.5mm special pipe/L-shaped special galvanized steel plate, thickness 2.0mm
40*80*1.5mm rectangular tube/L25*25*1.0 angle steel

*subject to confirmation

Wall Panels:

EPS composite board is 75mm

Roof Panels:

Roof tile steel single plate interlocking 50mm EPS composite plate, thickness 0.3mm

Roof insulation:

Glass wool rolled felt, thickness 60mm. None flammable

Flooring:

2mm PVC floor leather, hot melt caulking.

Structural panels:

18mm Cement fibre board

Entrance door:

Sliding door

Interior door:

Steel set door, W840mm×H2040mm, national standard fire door lock.

Windows:

Double Glazed windows 930 x 930mm
