30 ft Home

30 ft Home

$39,000.00 AUD
$39,000.00 AUD
Sale Sold out
Shipping calculated at checkout.

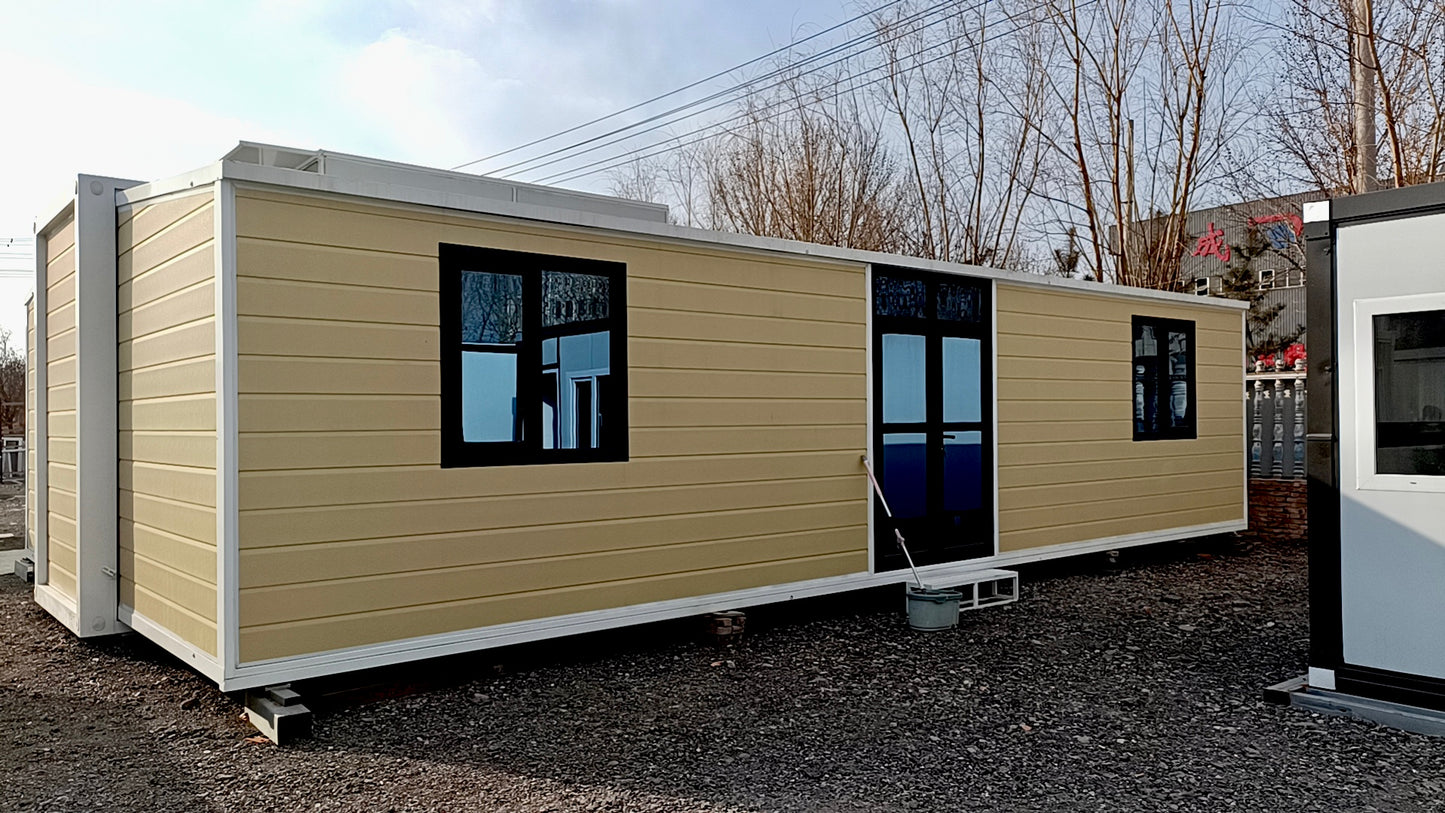

Welcome to the future of convenient living with our 40 ft expandable modular homes! Designed for speed and ease, these homes effortlessly expand to meet your growing needs. Within minutes, transform your cozy space into a comfortable haven, offering ample room for families seeking more space without compromising on environmental responsibility. Crafted with eco-friendly materials, these homes offer a sustainable solution, merging modern convenience with a conscious lifestyle. Upgrade your living space effortlessly and embark on a journey toward spacious, eco-conscious living!

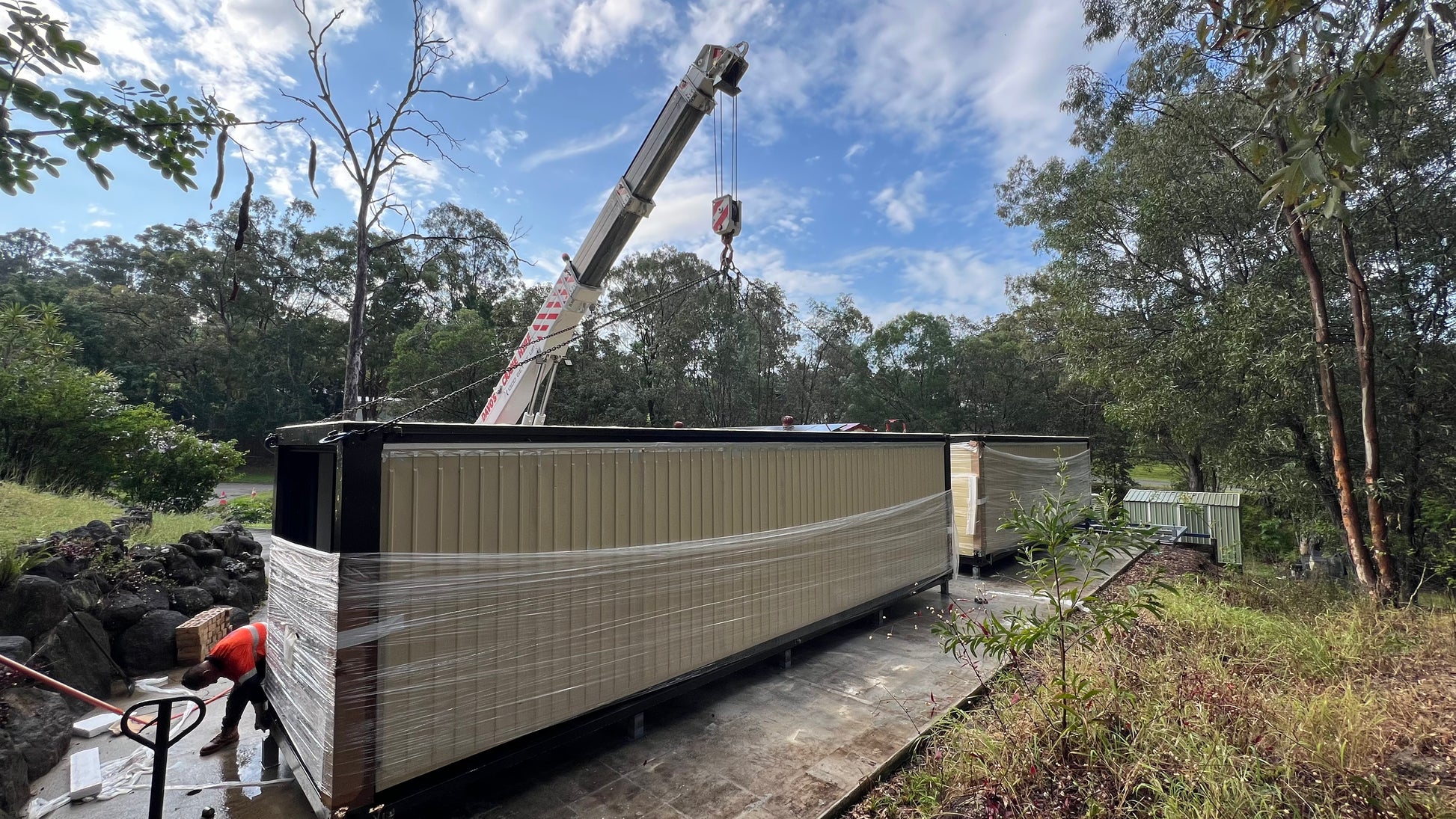

Starting from $39,000, Contact us about delivery and installation!

View full details

Get Your Free Quote Today

Customise your home and receive our delivered to door price!

Get your quote today!

SAA Approved Electrical System

- Australian standard concealed electrical box

- Australian standard sockets 12-15 units. International socket available

- CEE industrial plug: 220V，50Hz，3P32A×1

- Fully wired according to Australian standards

WaterMarked Plumbing system

- Pre plumbed WaterMarked Australian standard plumbing

- 100mm PVC septic tank

- 50mm grey water outlet

- Pressure tested hot and cold water inlet

Contact us for more informaiton

Product Specifications

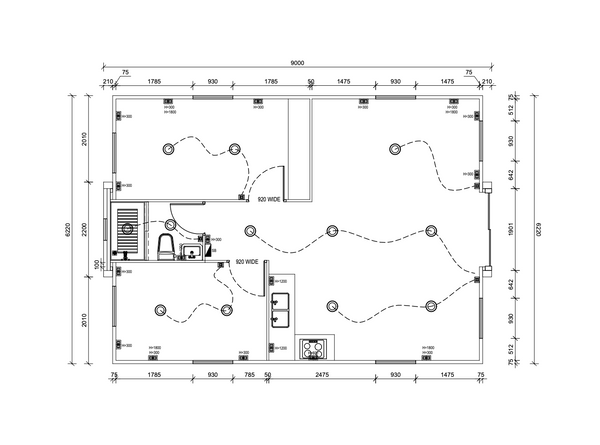

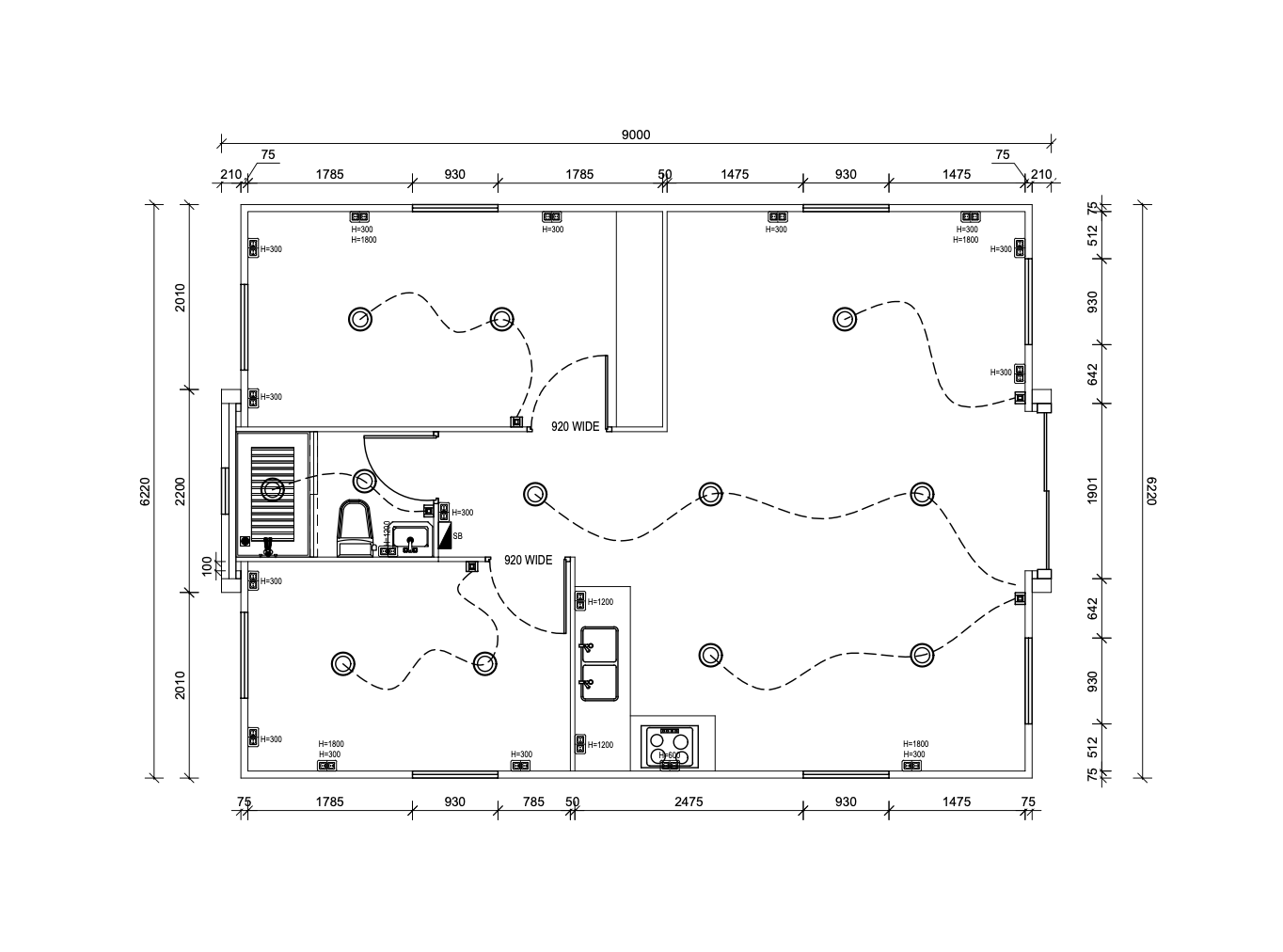

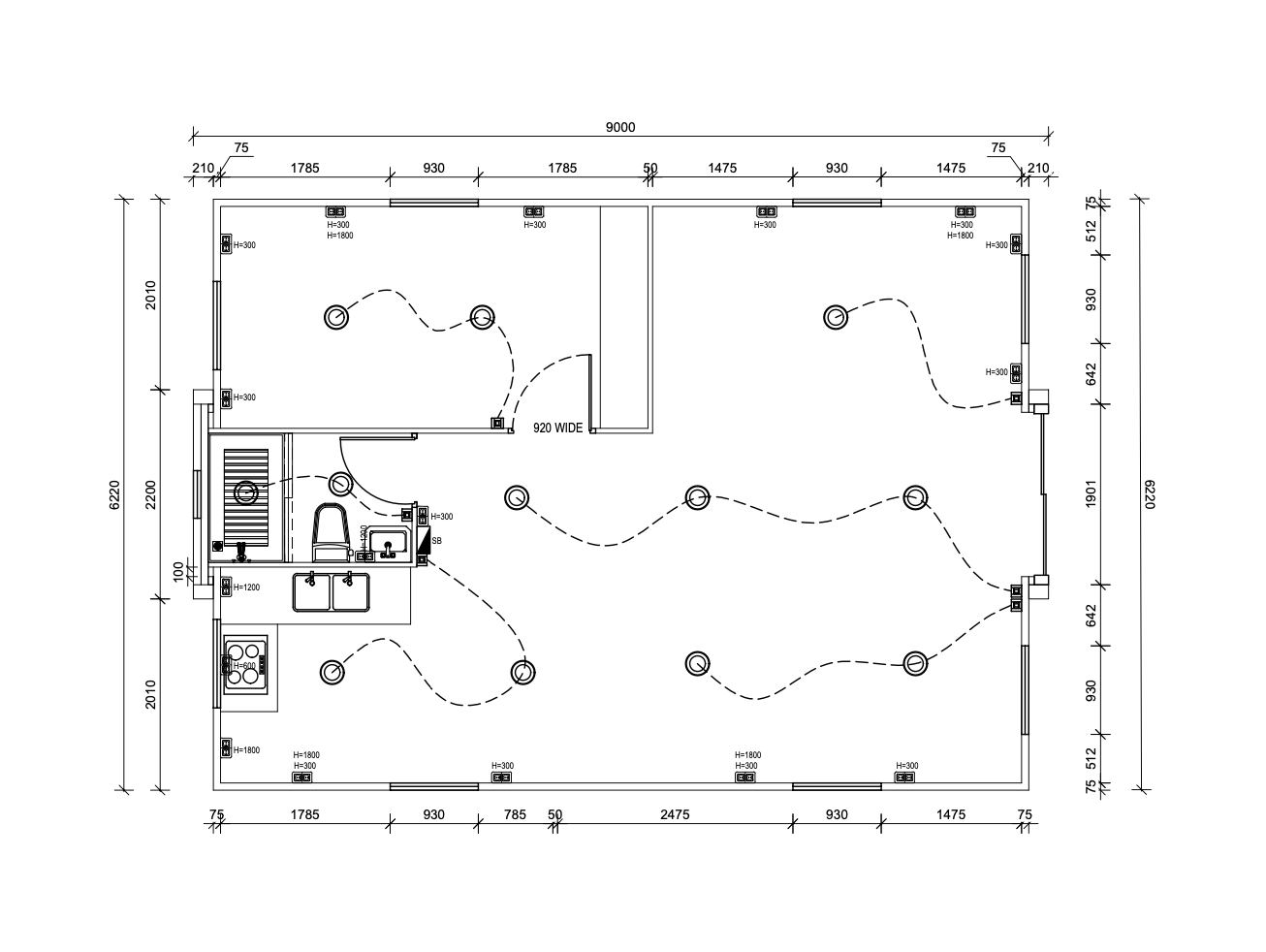

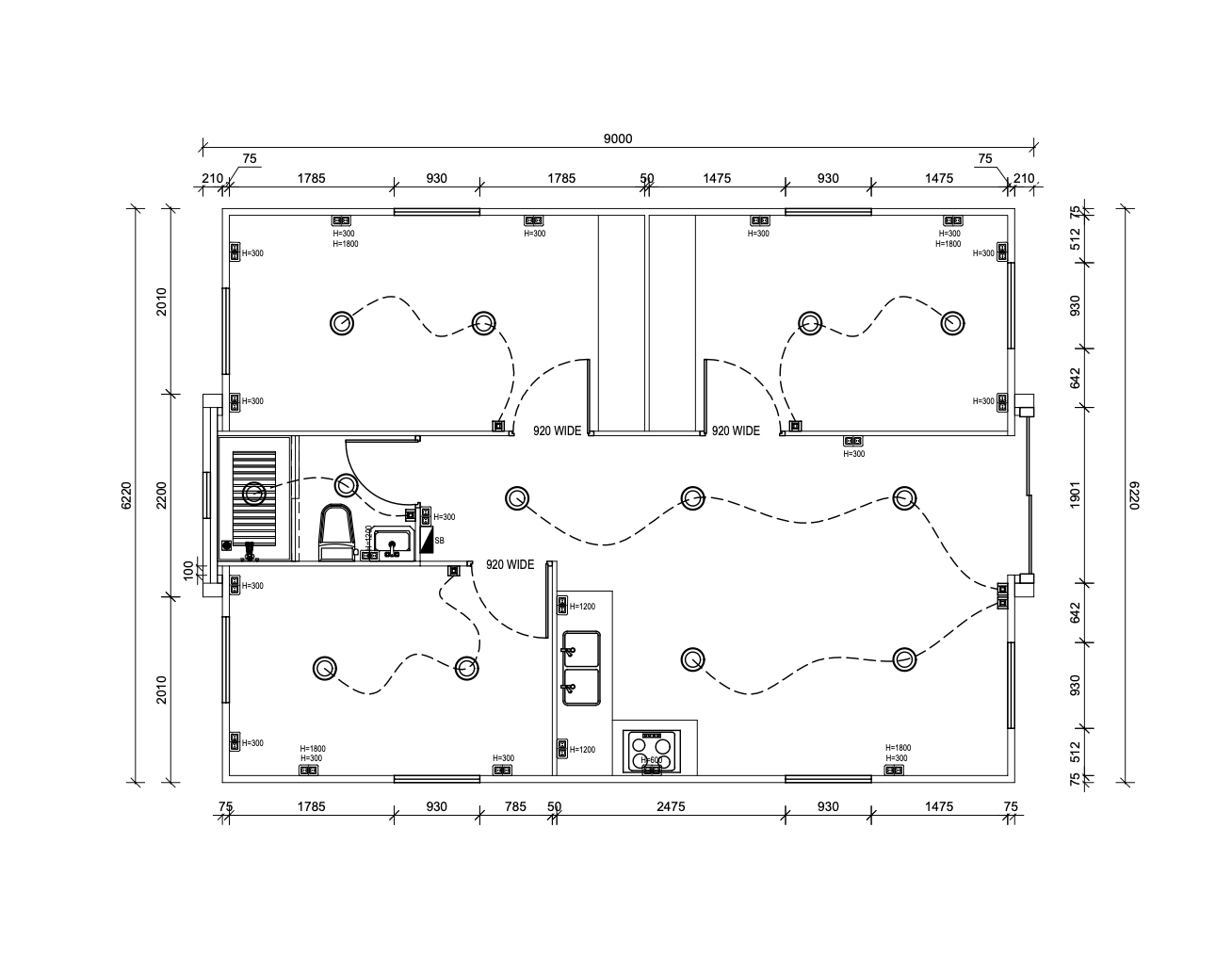

Dimension

Expanded size:

9000 x 6300mm x 2400mm

57 square meters

Loading size:

9000mm x 2200mm x 2400mm

Electrical

- Australian standard Concealed electrical box

- Australian standard sockets 12-15 units. International socket available

- CEE industrial plug: 220V，50Hz，3P32A×1

- Fully wired according to Australian standards

- 15W LED round ceiling light, 5 sets.

Bathroom

- Toilet

- Shower room

- Wash basin

- Ventilation window

- Water supply and drainage pipe fittings

Structural

Main Frame:

Main beam 1 on the ground: 80mm*100mm square steel, galvanized beam 2.5mm thick; Main beam 2 on the ground: 180m special-shaped C-shaped steel, galvanized beam 2.5mm thick
Ground secondary beam: specification 60*40*1.5mm thick*9 galvanized square tubes or C-shaped steel;
Column: specification 210*150mm, galvanized 2.5mm thick;
Roof main beam 1: 80mm*100mm square steel, galvanized 2.0mm thick; Roof main beam 2: 140m special-shaped C-shaped steel, galvanized beam 2.5mm thick
Roof secondary beams 40*40*1.5mm thick*7 galvanized square tubes or U-shaped steel, 20*40*1.2 square tubes*2 pieces

Side wings frame:

P80*1.5mm special pipe/P65*1.5mm special pipe/L-shaped special galvanized steel plate, thickness 2.0mm
40*80*1.5mm rectangular tube/L25*25*1.0 angle steel

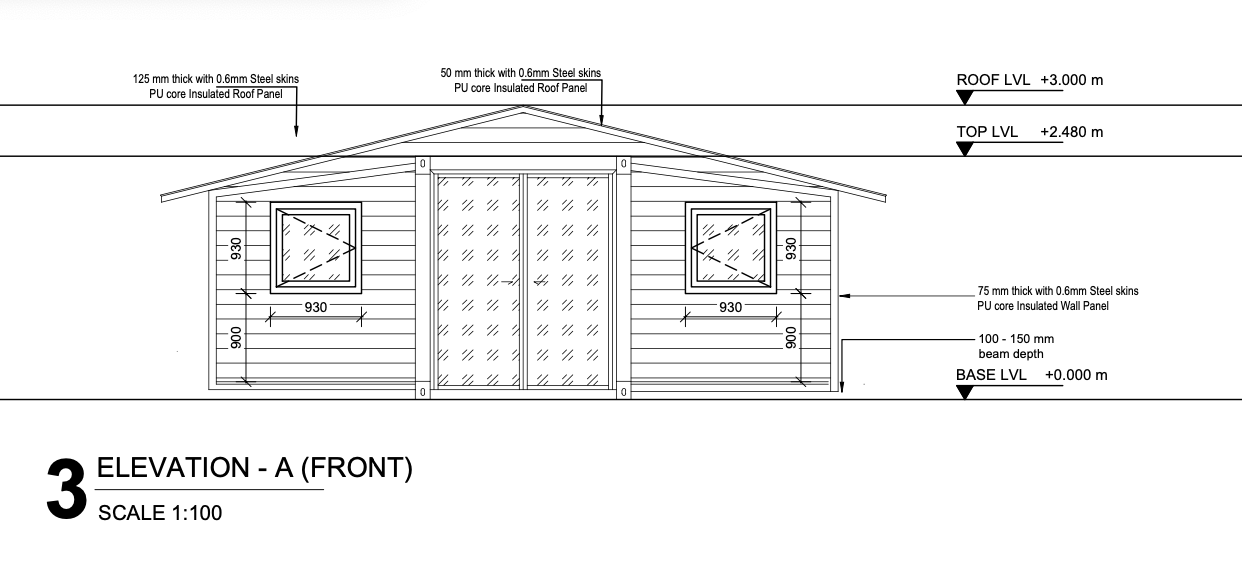

Panels

Wall Panels:

EPS composite board is 75mm

Roof Panels:

Roof tile steel single plate interlocking 50mm EPS composite plate, thickness 0.3mm

Roof insulation:

Glass wool rolled felt, thickness 60mm. None flammable

Flooring Panels

Flooring:

2mm PVC floor leather, hot melt caulking.

Structural panels:

18mm Cement fibre board

Windows and Doors

Entrance door:

KFC aluminum alloy bi-fold push-pull, W1900mm×H2280mm, tempered glass.

Interior door:

Steel set door, W840mm×H2040mm, national standard fire door lock.

Windows:

Aluminium casement window with alloy sliding track. Size: 930mm×930mm
